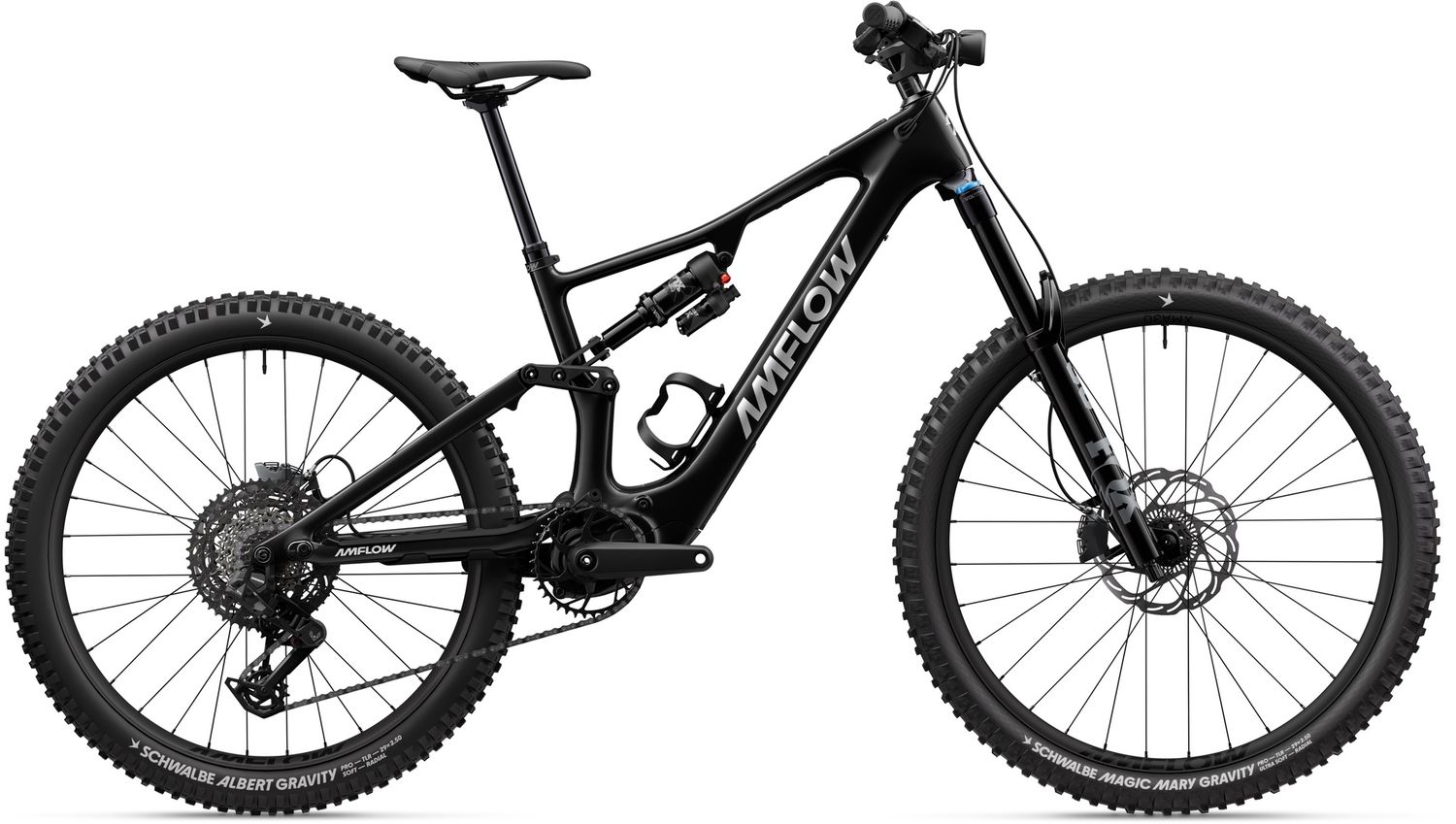

The Amflow PX Carbon is a full-power carbon e-mountain bike built for riders who want high performance, strong climbing ability and a highly adaptable ride feel without stepping into a top-tier build price.
At the heart of the bike is the Avinox M2S drive system, delivering powerful and controlled assistance with up to 150Nm of peak torque. Paired with a 700Wh integrated battery and fast charging, it gives you the range and support for long days in the hills, steep technical climbs and sustained trail riding.
What sets the PX platform apart is its adjustability. With multiple headset angles, bottom bracket height settings and chainstay positions, the bike can be tuned to suit different terrain and riding styles. It is also compatible with both 27.5" and 29" rear wheels, allowing you to dial in handling for stability, agility or a balance of both.
The PX Carbon build uses Fox Performance suspension and SRAM S1000 Eagle Transmission, offering a reliable and capable setup for aggressive trail riding. Combined with Magura Gustav Pro brakes and a mullet wheel configuration, it delivers a confident and controlled ride across varied terrain.
This is a bike for riders who want cutting-edge motor performance and a modern carbon chassis, with the flexibility to fine-tune their setup as their riding evolves.
Frame: Amflow PX Carbon Frame
Colour: Phantom Black
Geometry: 40 adjustable geometry configurations*
Compatibility: Compatible with 27.5" and 29" rear wheels
Motor: Avinox M2S Drive Unit: Nominal 130Nm, Peak 150Nm
Display: Avinox Screen: 2" OLED Control Display
Battery: Avinox Integrated Battery: 700Wh
Controllers: Avinox Wireless Controllers (left & right)
Charger: Avinox Fast Charger: 12A / 508W
Rear Shock: FOX Float X Performance (MY 2027), 2-position lever, custom tune, LSR adjustment, 210×55mm
Fork: FOX 36 Performance (MY 2027), 160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
Rear Derailleur: SRAM S1000 Eagle Transmission
Chainring: SRAM Eagle Transmission DM 38T (Avinox)
Shifter: SRAM AXS Pod Controller
Cassette: SRAM XS-1270 Eagle Transmission 10-52T
Chain: SRAM Eagle 70 Transmission Flattop
Power Supply: Avinox M2 Series AXS Extension Cable
Crankset: Avinox SL Crank
Crank Lengths: M/L: 155mm, XL/XXL: 160mm
Brakes: Magura Gustav Pro Hydraulic Disc Brakes (4-piston)
Rotors: Magura Sensor Rotors – 203mm / 2.5mm
Wheelset: Amflow XMA-30 (Mullet)
Front Rim: Alloy, 29", 30mm internal, 32H, tubeless ready
Rear Rim: Alloy, 27.5", 30mm internal, 32H, tubeless ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 15×110mm, 32H, 6-bolt
Rear Hub: Alloy, 12×148mm, 32H, HG freehub, 4 pawl / 36T
Front Tyre: Schwalbe Magic Mary Radial, 29×2.5, Ultra Soft
Rear Tyre: Schwalbe Albert Radial, 27.5×2.5, Addix Soft
Handlebar: Amflow Enduro Alloy, 40mm rise, 800mm width, 35mm clamp, 5° upsweep, 9° backsweep
Grips: Amflow Enduro Lock-on
Stem: Amflow Split Stem, 35mm length / 35mm clamp
Saddle: Amflow Mountain Saddle
Dropper Post: Travel adjust shim (0–25mm)
Dropper Sizes: M/L: 190mm, XL: 210mm, XXL: 230mm
Avinox Front Light
Amflow Bottle Cage
Geometry Adjustment System (Headset cups + flip-chip)
Dropper travel spacers (5/10mm)
Rear Light
Torque Wrench
Clear Frame Protection Film
Shock Pump
Quick Start Guide
| M | L | XL | XXL | ||
| Measurement | |||||
| A | Reach | 455mm | 478mm | 503mm | 528mm |
| B | Stack Height | 622.1mm | 632.2mm | 645.9mm | 659mm |
| C | Standover Height | 780mm | 785mm | 790mm | 795mm |
| D | Front Center | 793.1mm | 820.9mm | 852mm | 883.9mm |
| E | Fork Length | 570mm | 570mm | 570mm | 570mm |
| F | Wheelbase | 1231.3mm | 1259.1mm | 1290.2mm | 1322.1mm |
| G | Chainstay Length | 438 / 451mm | 438 / 451mm | 438 / 451mm | 438 / 451mm |
| H | Bottom Bracket Drop | 10.5 / 23.7mm | 10.5 / 23.7mm | 10.5 / 23.7mm | 10.5 / 23.7mm |
| I | Bottom Bracket Height | 345.5mm | 345.5mm | 345.5mm | 345.5mm |
| J | Effective Top Tube | 586.9mm | 619.7mm | 642.8mm | 672.2mm |
| K | Head Tube Angle | 64.2° | 64.2° | 64.2° | 64.2° |
| L | Head Tube Length | 109mm | 120mm | 135mm | 150mm |
| M | Seat Tube Angle (Actual) | 72° | 72° | 72° | 72° |
| N | Seat Tube Angle (Effective) | 78° | 78° | 78° | 77.7° |
| O | Seat Tube Length | 415mm | 427mm | 447mm | 466mm |
* Adjustable geometry via headset cups, bottom bracket height and chainstay settings. Chainstay and BB values shown reflect adjustable positions.
