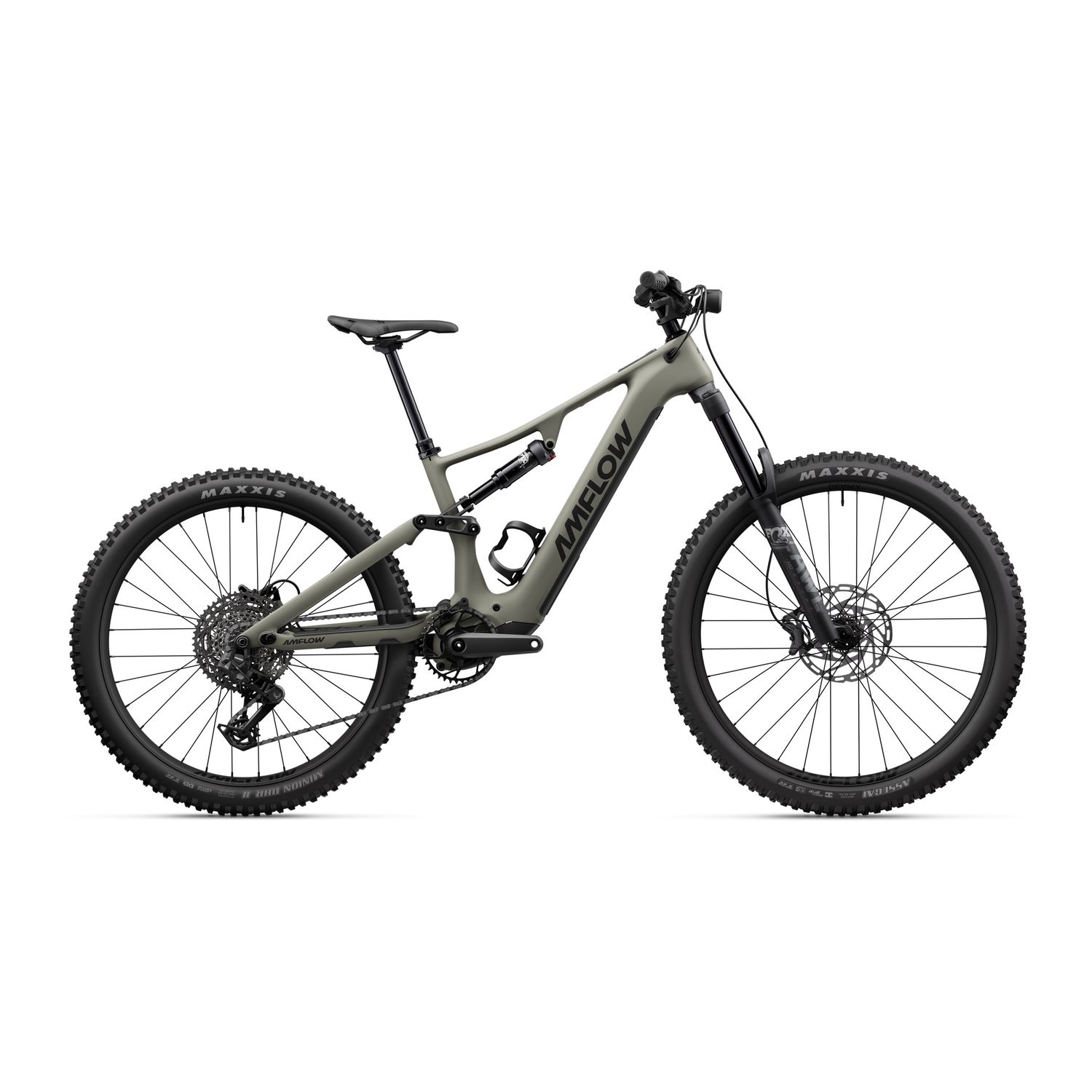

The Amflow PR Carbon is a highly capable full-power e-MTB designed for riders who want strong performance, excellent climbing ability and a more accessible entry into the Amflow platform.
Powered by the Avinox M2 drive unit, delivering up to 125Nm of peak torque, the PR Carbon provides smooth, controlled assistance that makes technical climbs easier and long rides more enjoyable. The removable 800Wh battery offers excellent range and flexibility, ideal for riders looking to maximise time on the bike.
Like the PX platform, the PR features a highly adjustable geometry system. With multiple headset angle settings, bottom bracket positions and chainstay adjustments, the bike can be tuned to suit different riding styles and terrain. It is also compatible with both 27.5" and 29" rear wheels, allowing riders to prioritise agility or stability.
With FOX suspension, SRAM Eagle Transmission and a durable alloy wheelset, the PR Carbon delivers a confident and capable ride for trail riders who want performance and adaptability without stepping into top-tier pricing.
Frame: Amflow PR Carbon Frame
Colour: Moss Green
Geometry: 40 adjustable geometry configurations*
Compatibility: Compatible with 27.5" and 29" rear wheels
Motor: Avinox M2 Drive Unit: Nominal 110Nm, Peak 125Nm
Display: Avinox Screen: 2-inch OLED Control Display
Battery: Avinox Removable Battery: 800Wh
Controllers: Avinox Wireless Controllers: Right and left sides
Charger: Avinox Charger: 4A / 168W
Rear Shock: FOX Float Rhythm (MY 2027), custom tune, LSR adjustment, 210×55mm, air shock
Fork: FOX AWL HD Sport (MY 2027), 160mm travel, RAIL 2.0 damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank
Crank Lengths: M/L: 155mm; XL/XXL: 160mm
Brakes: Tektro TKD173 Hydraulic Disc Brake, 4-piston calipers, Amflow custom
Rotors: Tektro Sensor Rotor (203mm, 2.3mm)
Wheelset: Amflow XMA-30 Mullet Version
Front Rim: Alloy, 29", 30mm inner width, 32H, tubeless ready
Rear Rim: Alloy, 27.5", 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls, 36T, HG
Front Tyre: Maxxis Assegai, 29.0×2.50, 3C MaxxGrip, EXO+, TR
Rear Tyre: Maxxis DHR II, 27.5×2.50, MaxxTerra, DD, TR
Handlebar: Amflow Enduro Alloy Handlebar, 40mm rise, 800mm width, 35mm diameter, 5-degree upsweep, 9-degree backsweep
Grips: Amflow Enduro Grip 2 Lock-on Grips
Stem: Amflow Mountain Bike Split Stem, 35mm length, 35mm clamping diameter
Saddle: Amflow Mountain Saddle
Dropper Post: Amflow Dropper Post Shim (adjustable travel: 0 / 5 / 10 / 15 / 20 / 25mm)
Dropper Sizes: M Frame: 190mm; L/XL Frame: 210mm; XXL Frame: 230mm
Avinox Front Light
Amflow Bottle Cage
Three Geometry Adjustment Systems (0.5° / 1° Headset Cups, Chainstay Flip-Chip)
Removable Battery Keys × 2
5 / 10mm Dropper Post Travel Reducing Spacer
Quick Start Guide
Rear Light
Torque Wrench
Clear Frame Protection Film
Shock Pump
| M | L | XL | XXL | ||
| Ref | Measurement | ||||
| A | Reach | 450mm | 475mm | 500mm | 525mm |
| B | Stack Height | 615mm | 625mm | 638mm | 652mm |
| C | Standover Height | 770mm | 775mm | 780mm | 785mm |
| D | Front Center | 785mm | 812mm | 842mm | 873mm |
| E | Fork Length | 560mm | 560mm | 560mm | 560mm |
| F | Wheelbase | 1220mm | 1247mm | 1277mm | 1308mm |
| G | Chainstay Length | 435 / 448mm | 435 / 448mm | 435 / 448mm | 435 / 448mm |
| H | Bottom Bracket Drop | 12 / 25mm | 12 / 25mm | 12 / 25mm | 12 / 25mm |
| I | Bottom Bracket Height | 343mm | 343mm | 343mm | 343mm |
| J | Effective Top Tube | 580mm | 612mm | 635mm | 665mm |
| K | Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| L | Head Tube Length | 105mm | 115mm | 130mm | 145mm |
| M | Seat Tube Angle (Actual) | 73° | 73° | 73° | 73° |
| N | Seat Tube Angle (Effective) | 78.5° | 78.5° | 78.5° | 78.2° |
| O | Seat Tube Length | 410mm | 422mm | 442mm | 460mm |
* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. These can be combined to create up to 40 geometry configurations depending on riding style and terrain.
