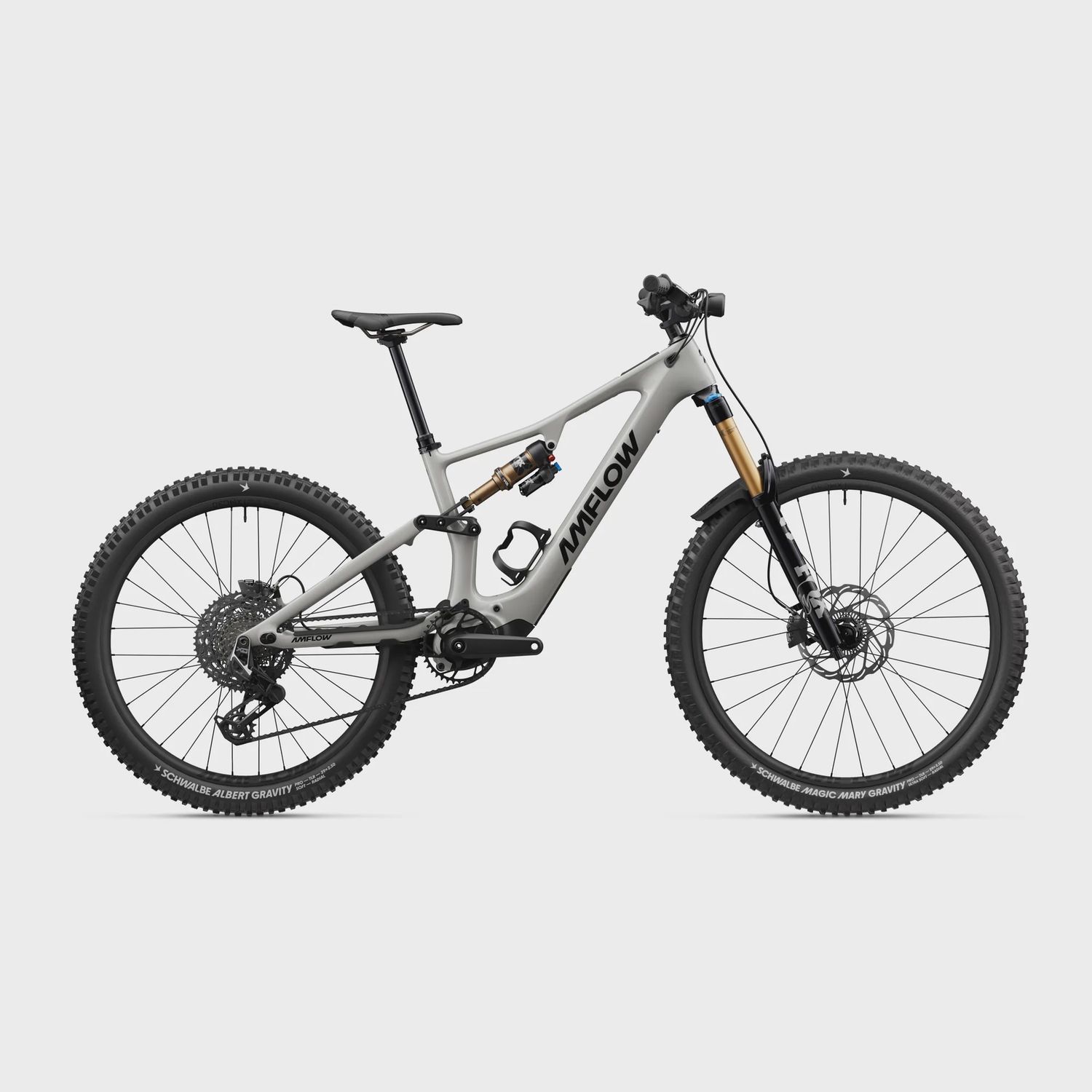

The Amflow PX Carbon Pro is the premium build in the PX range, designed for riders who want the full benefit of the Amflow platform with higher-end suspension, lighter components and a more refined overall specification.
Powered by the Avinox M2S drive system, the PX Carbon Pro delivers controlled and responsive assistance with up to 150Nm of peak torque. Combined with a 700Wh integrated battery, fast charging and a modern carbon chassis, it is built for long rides, steep terrain and aggressive trail performance.
Like the standard PX, the Pro model stands out for its adjustability. Multiple headset angle settings, bottom bracket height options and chainstay positions allow the bike to be tuned to suit different riding styles and trail conditions. It is also compatible with both 27.5" and 29" rear wheels, giving riders the option to prioritise agility, stability or a balance of both.
The PX Carbon Pro upgrades the package with Fox Factory suspension, SRAM X0 Eagle Transmission, carbon wheels and a carbon handlebar. Together, these components create a more responsive, lighter and more precise ride feel for riders who want maximum performance straight out of the box.
This is a high-spec e-mountain bike for riders who want cutting-edge motor performance, premium suspension and a highly adjustable carbon platform ready for serious trail riding.
We have a PX Carbon Pro demo bike available – come and experience the Avinox system and full PX platform before you buy.
Frame: Amflow PX Carbon Pro Frame
Colour: Moonstone Gray
Geometry: 40 adjustable geometry configurations*
Compatibility: Compatible with 27.5" and 29" rear wheels
Motor: Avinox M2S Drive Unit: Nominal 130Nm, Peak 150Nm
Display: Avinox Screen: 2" OLED Control Display
Battery: Avinox Integrated Battery: 700Wh
Controllers: Avinox Wireless Controllers (left & right)
Charger: Avinox Fast Charger: 12A / 508W
Rear Shock: FOX Float X Factory (MY 2027), 2-position lever, custom tune, LSC & LSR adjustment, 210×55mm
Fork: FOX 36 Factory (MY 2027), 160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset
Rear Derailleur: SRAM X0 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shifter: SRAM AXS Pod Rocker Controller
Cassette: SRAM XS-1295 Eagle Transmission Cassette 10-52T
Chain: SRAM X0 Eagle Transmission Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank
Crank Lengths: M/L: 155mm, XL/XXL: 160mm
Brakes: Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Rotors: Magura Sensor Rotor (203mm, 2.5mm)
Wheelset: Amflow XMC-30 Mullet Version
Front Rim: Carbon, 29", 30mm inner width, 28H, tubeless ready
Rear Rim: Carbon, 27.5", 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD
Front Tyre: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
Rear Tyre: Schwalbe Albert Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Handlebar: Amflow Enduro Carbon Handlebar, 40mm rise, 800mm width, 35mm diameter, 5-degree upsweep, 9-degree backsweep
Grips: Amflow Enduro Grip 2 Lock-on Grips
Stem: Amflow Mountain Bike Split Stem, 35mm length / 35mm clamping diameter
Saddle: Amflow Mountain Saddle Titanium
Dropper Post: Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm)
Dropper Sizes: M/L Frame: 190mm, XL Frame: 210mm, XXL Frame: 230mm
Avinox Front Light
Amflow Bottle Cage
IoT Nano SIM Card
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
Rear Light
Schwalbe Clik Valve Conversion Set
Torque Wrench
FOX 36 Mud Guard (Short)
Clear Frame Protection Film
5/10mm Dropper Post Travel Reducing Spacer
Shock Pump
Quick Start Guide
| M | L | XL | XXL | ||
| Measurement | |||||
| A | Reach | 455mm | 478mm | 503mm | 528mm |
| B | Stack Height | 622.1mm | 632.2mm | 645.9mm | 659mm |
| C | Standover Height | 780mm | 785mm | 790mm | 795mm |
| D | Front Center | 793.1mm | 820.9mm | 852mm | 883.9mm |
| E | Fork Length | 570mm | 570mm | 570mm | 570mm |
| F | Wheelbase | 1231.3mm | 1259.1mm | 1290.2mm | 1322.1mm |
| G | Chainstay Length | 438 / 451mm | 438 / 451mm | 438 / 451mm | 438 / 451mm |
| H | Bottom Bracket Drop | 10.5 / 23.7mm | 10.5 / 23.7mm | 10.5 / 23.7mm | 10.5 / 23.7mm |
| I | Bottom Bracket Height | 345.5mm | 345.5mm | 345.5mm | 345.5mm |
| J | Effective Top Tube | 586.9mm | 619.7mm | 642.8mm | 672.2mm |
| K | Head Tube Angle | 64.2° | 64.2° | 64.2° | 64.2° |
| L | Head Tube Length | 109mm | 120mm | 135mm | 150mm |
| M | Seat Tube Angle (Actual) | 72° | 72° | 72° | 72° |
| N | Seat Tube Angle (Effective) | 78° | 78° | 78° | 77.7° |
| O | Seat Tube Length | 415mm | 427mm | 447mm | 466mm |
* Adjustable geometry via headset cups, bottom bracket height and chainstay settings. Chainstay and BB values shown reflect adjustable positions.
