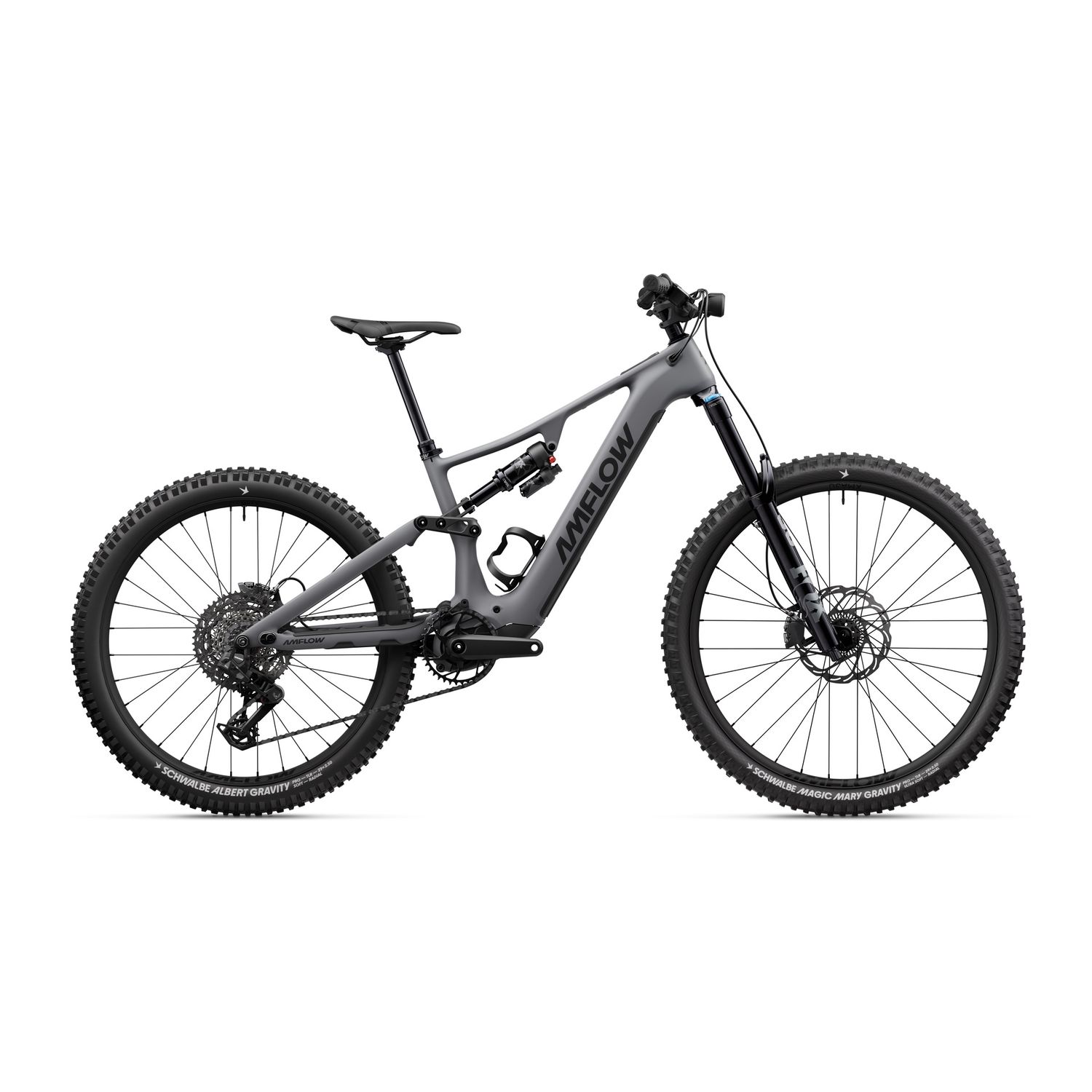

The Amflow PR Carbon Pro takes the PR platform to the next level, combining the same adaptable carbon chassis with a more powerful drive system, upgraded suspension and higher performance components.
At its core is the Avinox M2S drive unit, delivering up to 150Nm of peak torque for stronger climbing performance and a more responsive ride feel. Paired with an 800Wh removable battery and fast charging, it is built for demanding rides and extended time on the trails.
The PR platform retains its fully adjustable geometry, allowing riders to fine-tune the bike to suit different terrain and riding styles. Compatibility with both 27.5" and 29" rear wheels further enhances its versatility.
With FOX Performance suspension, Magura braking and a stronger overall build kit, the PR Carbon Pro offers a more refined and capable ride for riders who want extra power, improved control and a more premium setup straight out of the box.
Frame: Amflow PR Carbon Pro Frame
Colour: Basalt Grey
Geometry: 40 adjustable geometry configurations*
Compatibility: Compatible with 27.5" and 29" rear wheels
Motor: Avinox M2S Drive Unit: Nominal 130Nm, Peak 150Nm
Display: Avinox Screen: 2-inch OLED Control Display
Battery: Avinox Removable Battery: 800Wh
Controllers: Avinox Wireless Controllers: Right and left sides
Charger: Avinox Fast Charger: 12A / 508W
Rear Shock: FOX Float X Performance (MY 2027), 2-position lever, custom tune, LSR adjustment, 210×55mm, air shock
Fork: FOX 36 Performance (MY 2027), 160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank
Crank Lengths: M/L: 155mm; XL/XXL: 160mm
Brakes: Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Rotors: Magura Sensor Rotor (203mm, 2.5mm)
Wheelset: Amflow XMA-30 Mullet Version
Front Rim: Alloy, 29", 30mm inner width, 32H, tubeless ready
Rear Rim: Alloy, 27.5", 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls, 36T, HG
Front Tyre: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
Rear Tyre: Schwalbe Albert Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Handlebar: Amflow Enduro Alloy Handlebar, 40mm rise, 800mm width, 35mm diameter, 5-degree upsweep, 9-degree backsweep
Grips: Amflow Enduro Grip 2 Lock-on Grips
Stem: Amflow Mountain Bike Split Stem, 35mm length, 35mm clamping diameter
Saddle: Amflow Mountain Saddle
Dropper Post: Amflow Dropper Post Shim (adjustable travel: 0 / 5 / 10 / 15 / 20 / 25mm)
Dropper Sizes: M Frame: 190mm; L/XL Frame: 210mm; XXL Frame: 230mm
Avinox Front Light
Amflow Bottle Cage
Three Geometry Adjustment Systems (0.5° / 1° Headset Cups, Chainstay Flip-Chip)
Removable Battery Keys × 2
5 / 10mm Dropper Post Travel Reducing Spacer
Quick Start Guide
Rear Light
Torque Wrench
Clear Frame Protection Film
Shock Pump

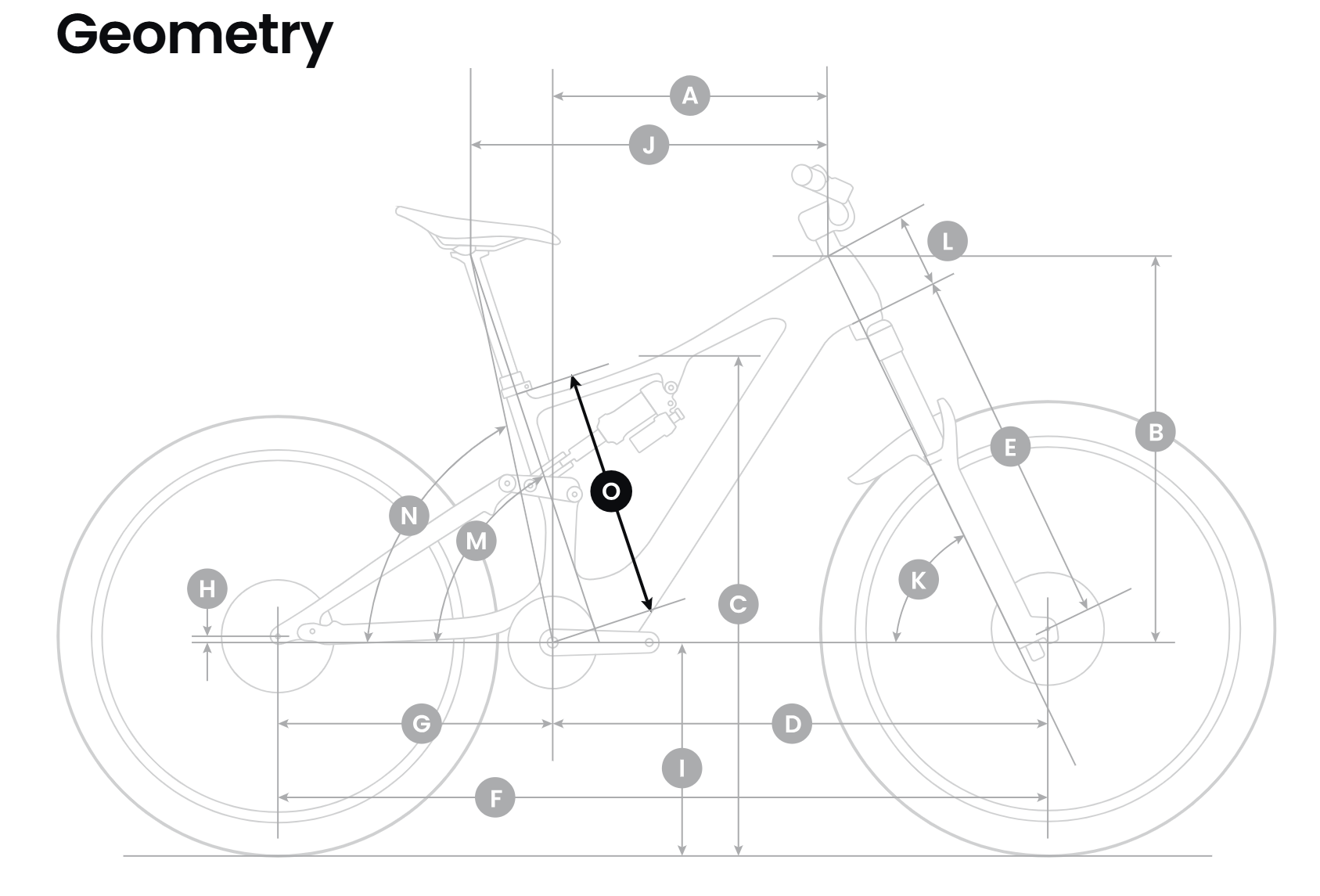

| M | L | XL | XXL | ||
| Ref | Measurement | ||||
| A | Reach | 450mm | 475mm | 500mm | 525mm |
| B | Stack Height | 615mm | 625mm | 638mm | 652mm |
| C | Standover Height | 770mm | 775mm | 780mm | 785mm |
| D | Front Center | 785mm | 812mm | 842mm | 873mm |
| E | Fork Length | 560mm | 560mm | 560mm | 560mm |
| F | Wheelbase | 1220mm | 1247mm | 1277mm | 1308mm |
| G | Chainstay Length | 435 / 448mm | 435 / 448mm | 435 / 448mm | 435 / 448mm |
| H | Bottom Bracket Drop | 12 / 25mm | 12 / 25mm | 12 / 25mm | 12 / 25mm |
| I | Bottom Bracket Height | 343mm | 343mm | 343mm | 343mm |
| J | Effective Top Tube | 580mm | 612mm | 635mm | 665mm |
| K | Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| L | Head Tube Length | 105mm | 115mm | 130mm | 145mm |
| M | Seat Tube Angle (Actual) | 73° | 73° | 73° | 73° |
| N | Seat Tube Angle (Effective) | 78.5° | 78.5° | 78.5° | 78.2° |
| O | Seat Tube Length | 410mm | 422mm | 442mm | 460mm |
* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. These can be combined to create up to 40 geometry configurations depending on riding style and terrain.
