Velduro Rogue Frameset (no shock)
Product Details
Brand: Velduro

PRE-ORDER NOW FOR FRAMES ARRIVING IN JUNE: 017687 21920

Description

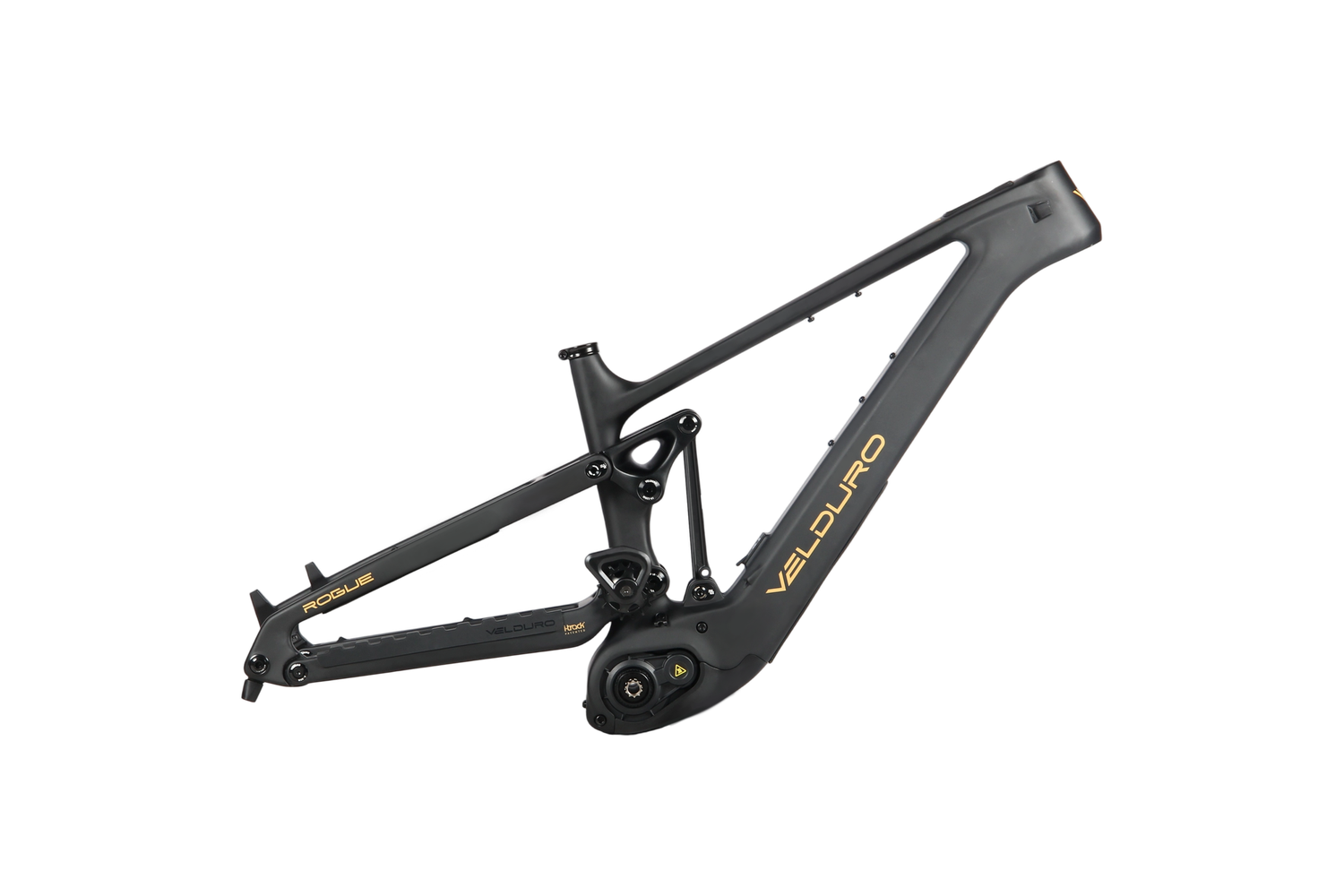

The Velduro Rogue Frame Only is a high-performance carbon e-enduro platform for riders wanting to build a serious custom bike around the DJI Avinox system. Featuring a mid-pivot layout, integrated 800Wh battery and progressive mixed-wheel geometry, it is designed for aggressive enduro riding and demanding terrain.

Supplied without a rear shock, this version is ideal for riders who want full control over their suspension setup while benefiting from the advanced Rogue chassis and motor system.

Build your dream EMTB with Velduro. Using flip chips the Rogue's modular frame can adapt to your needs and riding style. Swap the travel, tweak geometry or switch wheel sizes and customise your ride to create your Dream Machine.

In Standard Mode (170mm fork / 165mm rear with MX wheels), it's a trail-taming beast. Switch to All-Mountain Mode (160mm front/rear with MX wheels) for flowy precision, or unleash enduro Mode (180mm front / 172mm rear with 29inch rear wheel) to dominate descents. The Rogue is powered by the DJI Avinox drive system and 800wh battery.

  • I-Track suspension: Lower Kick-back + optimised anti-squat
  • Carbon Fibre Monocoque Frame
  • Shock Flip Chip: unlock 5mm extra travel (172mm max with 29inch rear wheel)
  • Mullet or 29er - Our GeoLock module keeps head tube angle, chain stay length and BB height identical across wheel sizes with no compromises
  • Warranty: Frame 5-Years | Avinox Drive System 2-Years
  • Frame only does not include rear shock, Custom tuned Shock will be available to order: Pricing TBC
What's Included

What's Included

  • Frame: Rogue carbon frame
  • Idler: 16T CNC idler with idler guide
  • Headset: FSA No.57 ZS44/56 headset
  • Motor Cover: Rogue motor cover
  • Charge Port Cover: Rogue charge port cover
  • Rear Axle: 12x148 rear thru axle
  • Hanger: UDH hanger
  • Hardware: Bottle cage screws, seatpost clamp, cable lugs
  • Motor: DJI Avinox M1 motor, 250W, 105Nm
  • Spider: DJI Avinox chainwheel spider with lock
  • Crank: DJI Avinox ISIS crank, 155mm
  • Battery: DJI Avinox battery, 36V 800Wh
  • Display: DJI DP100 2-inch smart screen
  • Remote: DJI BC100 bluetooth remoter x2
  • Speed Sensor: DJI speed sensor
  • Charger: DJI 4A 168Wh charger
  • Power Cables: DJI power cables
  • Chainwheel: Velduro steel chainwheel, 104BCD, 34T
Frame Specification

Frame Specification

  • Frame: Carbon fibre enduro frame, 165mm rear travel, up to 172mm, mid-pivot, integrated battery, rear wheel flip chip, shock position flip chip, internal cable routing, Boost 12x148mm, 16T idler, oversized bearings
  • Motor: DJI Avinox M1, 250W, 105Nm, boost to 1000W / 120Nm
  • Battery: DJI Avinox 36V 800Wh
  • Display: DJI Avinox 2-inch OLED / DJI DP100 smart screen
  • Controller: DJI BC100 bluetooth remoter x2
  • Rear Axle: 12x148mm
  • Seatpost Diameter: 31.6mm
  • Weight: Not listed in PDF for frame-only version
  • Certification: Not listed separately on frame-only page
Compatibility

Spec Suitable List

  • Headset / Handle System: External wiring headset, ZS, dia top 44mm / bottom 56mm
  • Fork Compatibility: 1.5T, suitable for 160-180mm travel forks, 170mm recommended, CTA 584mm
  • Shock Compatibility: 205x65mm (TR), bushing M8x30mm
  • Rear Travel Compatibility: 65mm stroke shock gives up to 172mm rear travel, 62.5mm stroke shock gives 160mm rear travel
  • Chainwheel: 104BCD, up to 34T
  • Crank: Up to 165mm length, minimum offset 25mm
  • Drivetrain: UDH derailleur suitable, 1x only, Shimano and SRAM compatible, e-shift and manual shift both fit
  • Manual Shift Cable Length: 2000mm
  • Front Hub: Depends on fork, normally 15x110mm
  • Rear Hub: 12x148 boost, 6-bolt
  • Front Rim: 29" / 700C
  • Rear Rim: 29" / 700C or 27.5" / 650B
  • Rear Tyre Clearance: Max 29x2.4 or 27.5x2.4
  • Rear Brake Mount: Post mount 200mm directly
  • Front Brake Cable Length: 850mm
  • Rear Brake Cable Length: 1700mm
  • Seatpost Insert Length: S: 262mm / M: 282mm / L: 302mm / XL: 325mm
  • Suggested Dropper Travel: S: 180mm / M&L: 210mm / XL: 240mm
  • Dropper Cable Length: 1200mm
