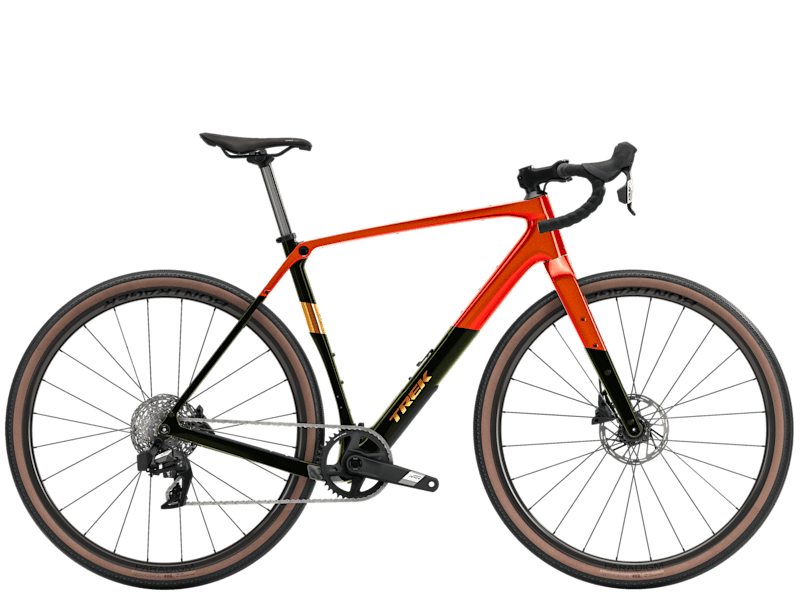

The Trek Checkpoint SL 5 AXS Gen 3 is a lightweight carbon gravel bike built for speed, adventure and long-distance comfort. Its 500 Series OCLV Carbon frame with IsoSpeed and downtube storage offers stiffness where you need it and compliance where you want it. The wireless SRAM Apex XPLR eTap AXS 12-speed drivetrain provides smooth, precise shifting on mixed terrain, while powerful hydraulic disc brakes deliver confidence on descents. Bontrager Girona RSL 42 mm tubeless tyres and Paradigm wheels ensure grip and comfort on gravel roads, bikepacking tours or endurance racing. With mounts for racks, mudguards and bags, the Checkpoint SL 5 AXS is ready for everything from daily commutes to ultra-distance gravel events.
Frame: 500 Series OCLV Carbon, IsoSpeed, downtube storage, rack & mudguard mounts, frame bag mounts, RCS Headset, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm
Fork: Checkpoint full carbon, tapered steerer, mudguard & rack mounts, flat-mount disc, 12x100 mm
Weight: ML – 9.50 kg (20.95 lbs, with TLR sealant)
Weight Limit: 125 kg (bike, rider and cargo)
Battery: SRAM AXS battery pack (charger included)
Rear Derailleur: SRAM Apex XPLR eTap AXS, max 44T
Crankset: SRAM Apex 1, 40T, DUB Wide – 165 mm (XS, S) / 170 mm (M) / 172.5 mm (ML, L) / 175 mm (XL)
Bottom Bracket: SRAM DUB Wide, T47 threaded
Cassette: SRAM XPLR PG-1231, 11-44, 12-speed
Chain: SRAM Apex, 12-speed
Max Chainring Size: 1x: 44T / 2x: 46/30T
Wheels: Bontrager Paradigm SL or Paradigm 23, Tubeless Ready, 24h, 21–23 mm width
Hubs: Bontrager alloy, sealed bearings, CenterLock, 100x12 mm (front) / 142x12 mm (rear)
Tyres: Bontrager Girona RSL, 700x42 mm, Tubeless Ready, GR puncture protection, 220 tpi
Tubeless: Bontrager TLR sealant, 180 ml / Bontrager TLR rim strip
Max Tyre Size: 50 mm (without mudguards) / 42 mm (with mudguards)
Saddle: Bontrager Verse Short Comp, steel rails, 155 mm (XS, S) / 145 mm (M–XL)
Seatpost: Bontrager carbon, Ø27.2 mm, 8 mm offset, 330 mm
Handlebar: Bontrager Elite Gravel alloy, widths: 40 cm (XS) / 42 cm (S, M) / 44 cm (ML, L) / 46 cm (XL)
Handlebar Tape: Bontrager Supertack Perf tape
Stem: Bontrager Elite, Blendr-compatible, 7°, 60 mm (XS) / 70 mm (S) / 80 mm (M, ML) / 90 mm (L) / 100 mm (XL)
Brakes: SRAM Apex hydraulic disc
Rotors: SRAM Paceline, CentreLock, 160 mm
Rotor Size: Max 180 mm front, 180 mm rear
