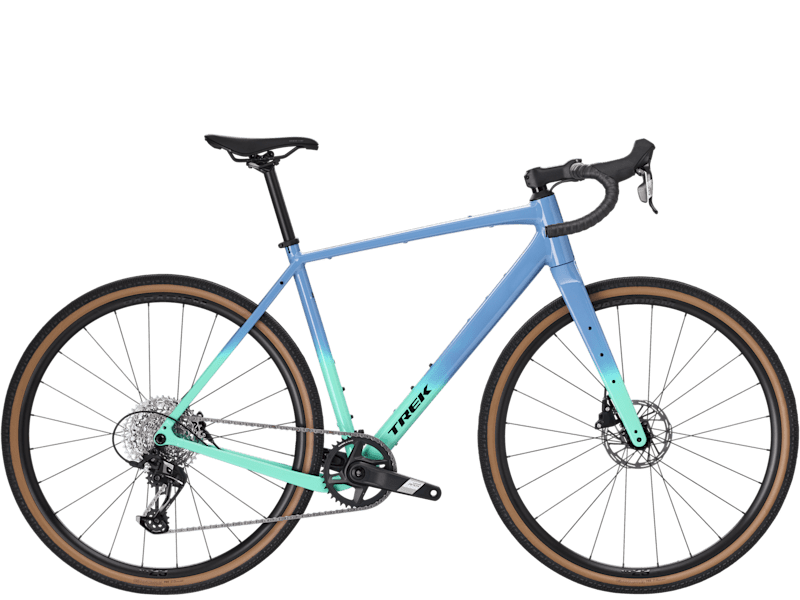

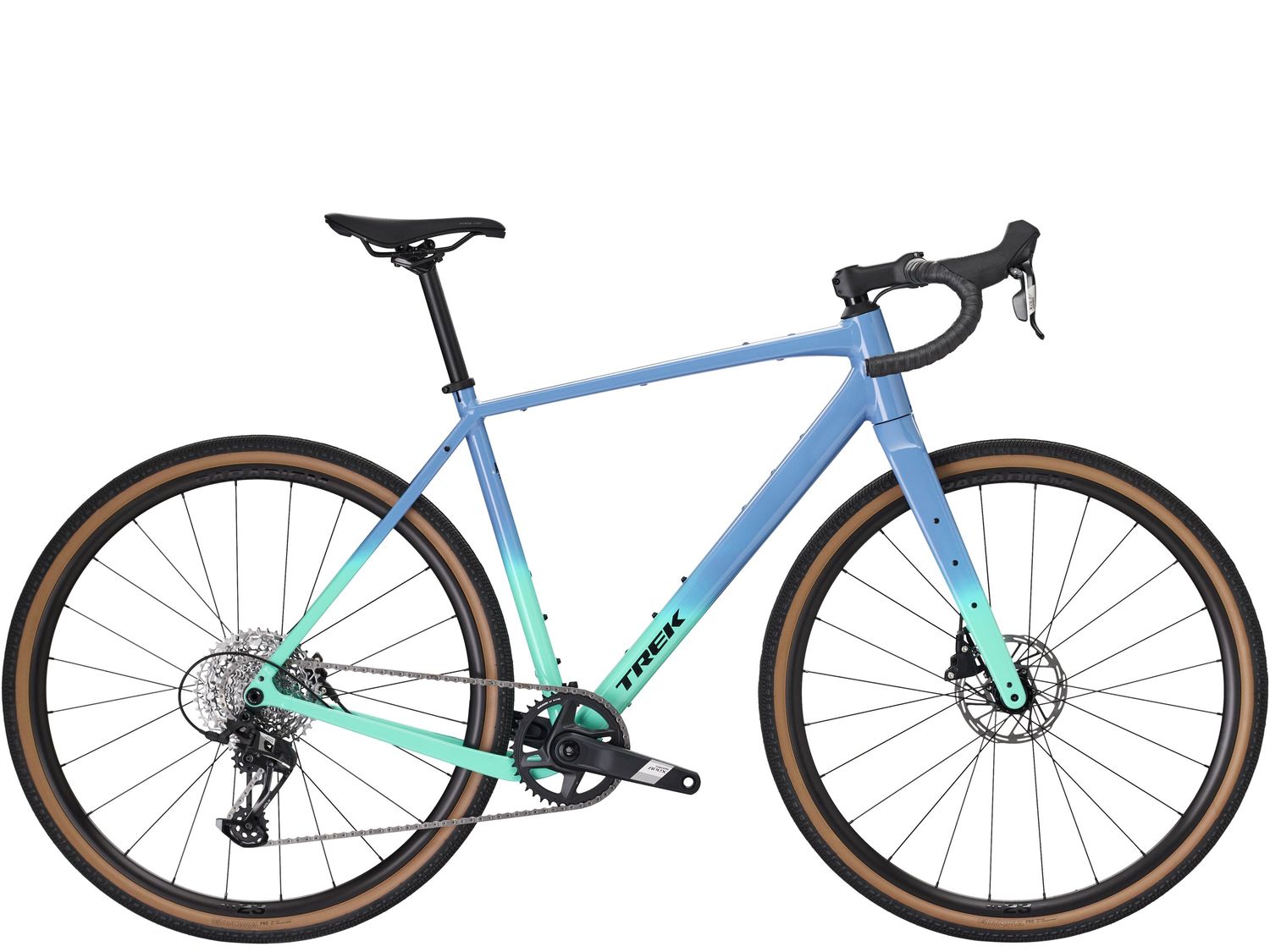

The Trek Checkpoint ALR 5 is a high-performance aluminium gravel bike built for long adventures, fast-paced racing and rugged off-road exploration. Its lightweight 300 Series Alpha Aluminium frame combines durability with versatility, offering mounts for racks, mudguards and bags so you can customise it for bikepacking or commuting. Equipped with a carbon fork, SRAM Apex 12-speed drivetrain and powerful hydraulic disc brakes, it delivers reliable shifting and confident stopping power on mixed terrain. Bontrager GR1 Team Issue tyres, tubeless-ready Paradigm wheels and stable geometry make this gravel race bike equally at home on gravel roads, tarmac or light trails.
Frame: 300 Series Alpha Aluminium, tapered head tube, internal routing, 3S chain keeper, T47 BB, rack & mudguard mounts, frame bag mounts, flat-mount disc, 142x12 mm thru axle
Fork: Checkpoint carbon, tapered steerer, rack & mudguard mounts, flat-mount disc, 12x100 mm thru axle
Weight: 56 – 9.71 kg (21.41 lbs, with TLR sealant)
Weight Limit: 125 kg (bike, rider and cargo)
Shifters: SRAM Apex, 12-speed
Rear Derailleur: SRAM Apex XPLR, max 44T
Crankset: SRAM Apex 1, 40T, DUB Wide, 165 mm (49) / 170 mm (52) / 172.5 mm (54, 56) / 175 mm (58, 61)
Bottom Bracket: SRAM DUB Wide, T47 threaded
Cassette: SRAM XPLR PG-1231, 11-44, 12-speed
Chain: SRAM Apex, 12-speed
Max Chainring Size: 1x: 44T (SRAM) / 50T (Shimano) / 2x: 50/34
Wheels: Bontrager Paradigm, Tubeless Ready, 24h, 21 mm width
Hubs: Bontrager alloy, sealed bearing, CenterLock, 100x12 mm (front) / 142x12 mm (rear)
Tyres: Bontrager GR1 Team Issue, 700x40 mm, Tubeless Ready, 120 tpi
Tubeless: Bontrager TLR sealant, 180 ml / Bontrager TLR rim strip
Saddle: Bontrager Verse Comp, steel rails, 155 mm (49, 52) / 145 mm (54–61)
Seatpost: Bontrager alloy, Ø27.2 mm, 12 mm offset, 330 mm
Handlebar: Bontrager Elite Gravel alloy, widths: 38 cm (49) / 40 cm (52) / 42 cm (54, 56) / 44 cm (58, 61)
Handlebar Tape: Bontrager Supertack Perf tape
Stem: Bontrager Elite, Blendr-compatible, 7°, 70 mm (49) / 80 mm (52, 54) / 90 mm (56, 58) / 100 mm (61)
Brakes: SRAM Apex hydraulic disc, flat mount
Rotors: SRAM Paceline, CentreLock, 160 mm
Rotor Size: Max 160 mm front & rear
